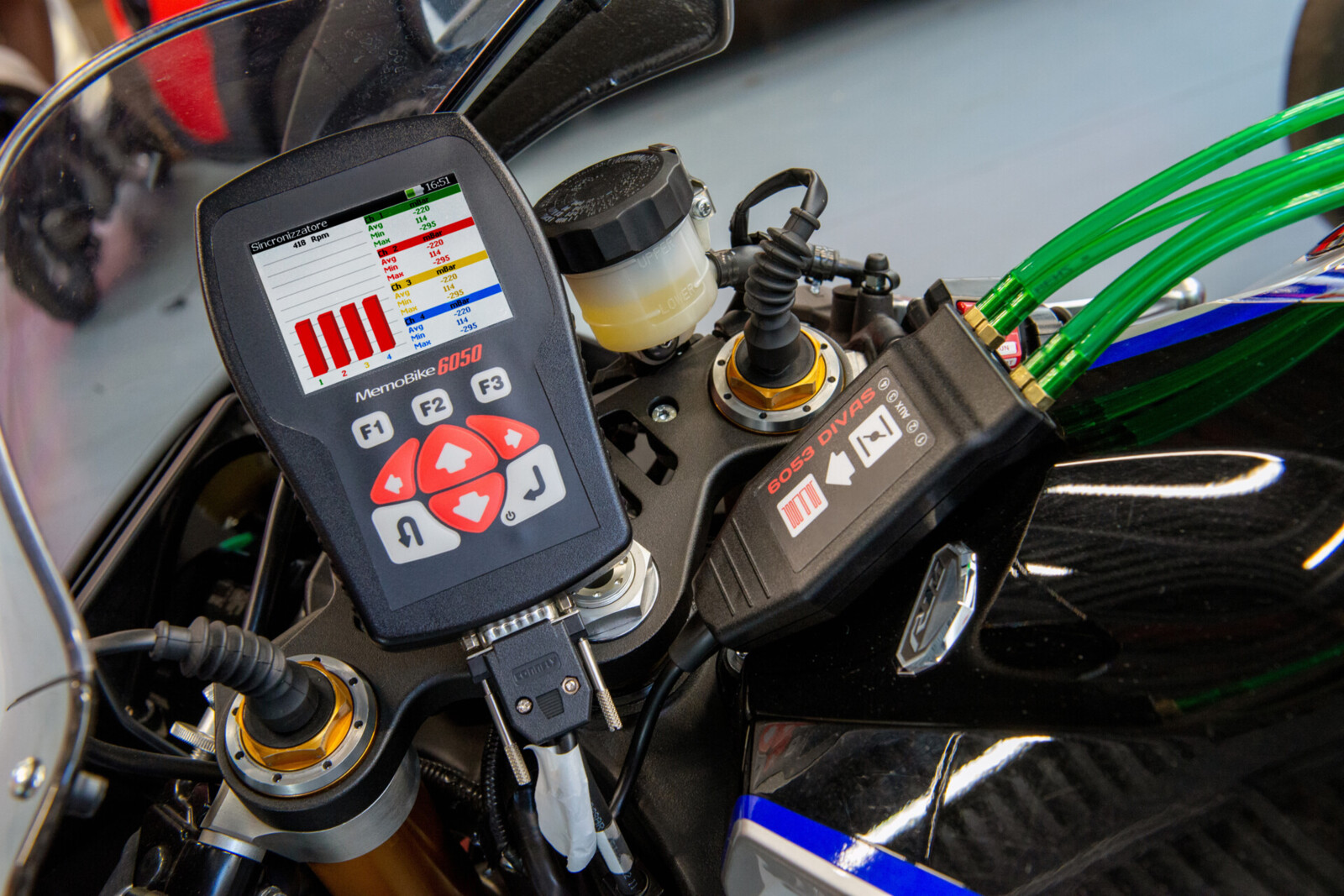

Throttle body synchronizer
Essential for your Memobike 6050
The DIVAS 6053 is an accessory available for the MemoBike 6050, which extends its wide range of diagnostic functionalities through a series of additional applications essential for the proper tuning of two-wheeled vehicles:
- Synchronization of throttle bodies on carburetors and electronic injection systems
- Dynamic analysis of intake manifold pressures
- Integrated synchronization procedures with engine control unit diagnostic functionalities (idle regulator locking, TPS reset and/or adaptive parameter resetting, fault memory analysis, verification of correct operating conditions, etc..)
- 3 analog inputs for dynamic analysis and data acquisition from sensors on the vehicle
- Built-in microphone
| TECHNICAL DATA | |
|---|---|
| Pressure sensor channels | 4 |
| Pressure sensor range | from 15 KPa to 115 KPa (from 150 mBar to 1150 mBar) |
| Pressure sensor accuracy | +- 1 mBar |
| Pressure sensor sampling speed | mBar, KPa, cmHg, A/D steps |
| Analog/digital inputs (AUX) | 0-5 volts and 0-12 volts |
| Sensor power output (AUX) | 5-12 volts stabilized |
| Engine RPM range | 400-6000 rpm |
| Integrated microphone | 1 speaker |
| Selectable pressure measurement unit | mBar, KPa, cmHg, A/D steps |
| POWER SUPPLY | Self-powered from internal 6050 battery |
| ADDITIONAL FEATURES | |
|---|---|
| Atmospheric pressure display | |
| Pressure sensor auto-calibration | |
| Multi-language | |
| Test saving and visualization | |
| ADAPTERS | |
|---|---|
| 4 M5 connectors | |
| 4 M6 connectors | |
| 1 T | |
| DIMENSIONS | |
|---|---|
| 4x7 mt 6 (resistant to chemical agents) | |
| 5x8 mt 0.5 (silicone/heat-resistant) | |
DON'T MISS A SINGLE UPDATE!
The list of applications is constantly evolving and being updated, thanks to the commitment and dedication of Dimsport technicians who, day by day, professionally add new vehicles to the catalog, continually enriching the available solutions to offer increasingly complete and up-to-date services.
Some supported brands:
ADIVA – APRILIA – ARTIC-CAT – BENELLI – BIMOTA BMW – BRP CAN-AM – CAGIVA – DAELIM – DERBI DUCATI – GARELLI – GAS GAS – GILERA – HARLEY DAVIDSON – HONDA – HYOSUNG – KAWASAKI KTM – KVN MOTOR – KYMCO – LAVERDA – MALAGUTI MONDIAL – MOTO GUZZI – MOTO MORINI – MV AGUSTA – MZ – PEUGEOT – PIAGGIO – POLARIS SHERCO – SUZUKI – SY
Do you want to find out all the supported vehicles?
Complete application list
